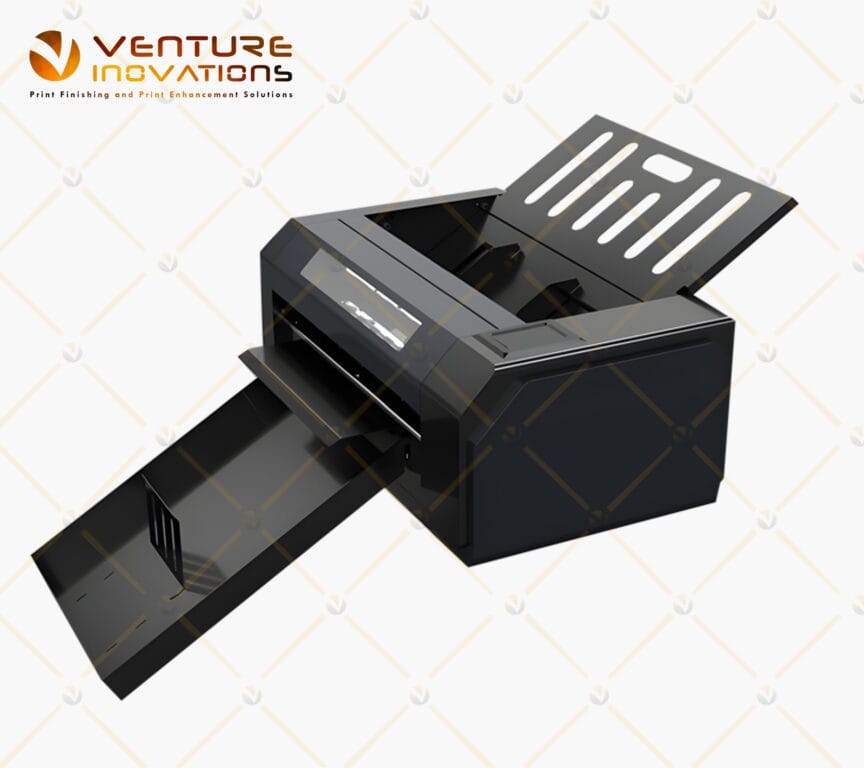

Venture offers an automatic continuous paper feeding digital cutting machine is widely used in various label customization and small batch processing industries, making it an ideal configuration for your high-quality and high-performance products. In addition to the half cut for adhesive sheets, heavy cutting may also be performed for all the applications which require that, such as labels, business cards, mono cartons, and more; it successfully cuts media with weight ranging from 170 to 450 Gsm.
Features:
- Professional design to guarantee media save(only 5mm edge margin).
- Support 150 Sheet Loading Capacity.
- High speed to save working time.
- Intelligent program to correct cutting position when media slip.
- Fast speed with high precision (35pcs 5cm circles only take 23s).
- Direct Corel Draw/AI output, No need extra softwares.
- Support USB disk, USB, LAN & WiFi communication.
- Full Metal Machine Body, Solid & Practical Workmanship.
- The Newest ARM Processor, Smooth Surface and Accurate
- Cutting control.
- Faster Speed upto 1600 mm/sec.
- Less Noise, Less than 40 db.
- Auto Paper Feeding System.
- Various Material can be Scan.
Specifications:
Max media width – 370mm
Max cutting width – 360mm
Blank size – 5mm edge margin
Positioning – Automatic CCD Camera Positioning
Interface – USB/U Disk/WiFi
Control panel – Touch Screen
Head – Dual Head (Cut & Crease)
Driver – High-precision servo system
Max cutting speed – 1600mm/s
Max cutting thickness – 1mm
Pressure – 50-1000g
Mechanical precision – 0.005 mm (5μm)
Repeatable precision – 0.1mm
Power supply – AC90~240V / 50HZ~60HZ, 100W
Operational environment – +5℃~ +35℃，Relative Humidity 30%~70%
Package details – Net weight -40 Kgs; Gross weight: 45 Kgs
Machine Dimension – 900(Y)x570(X)x550(H)mm
Carton size – 745X432X280 mm
