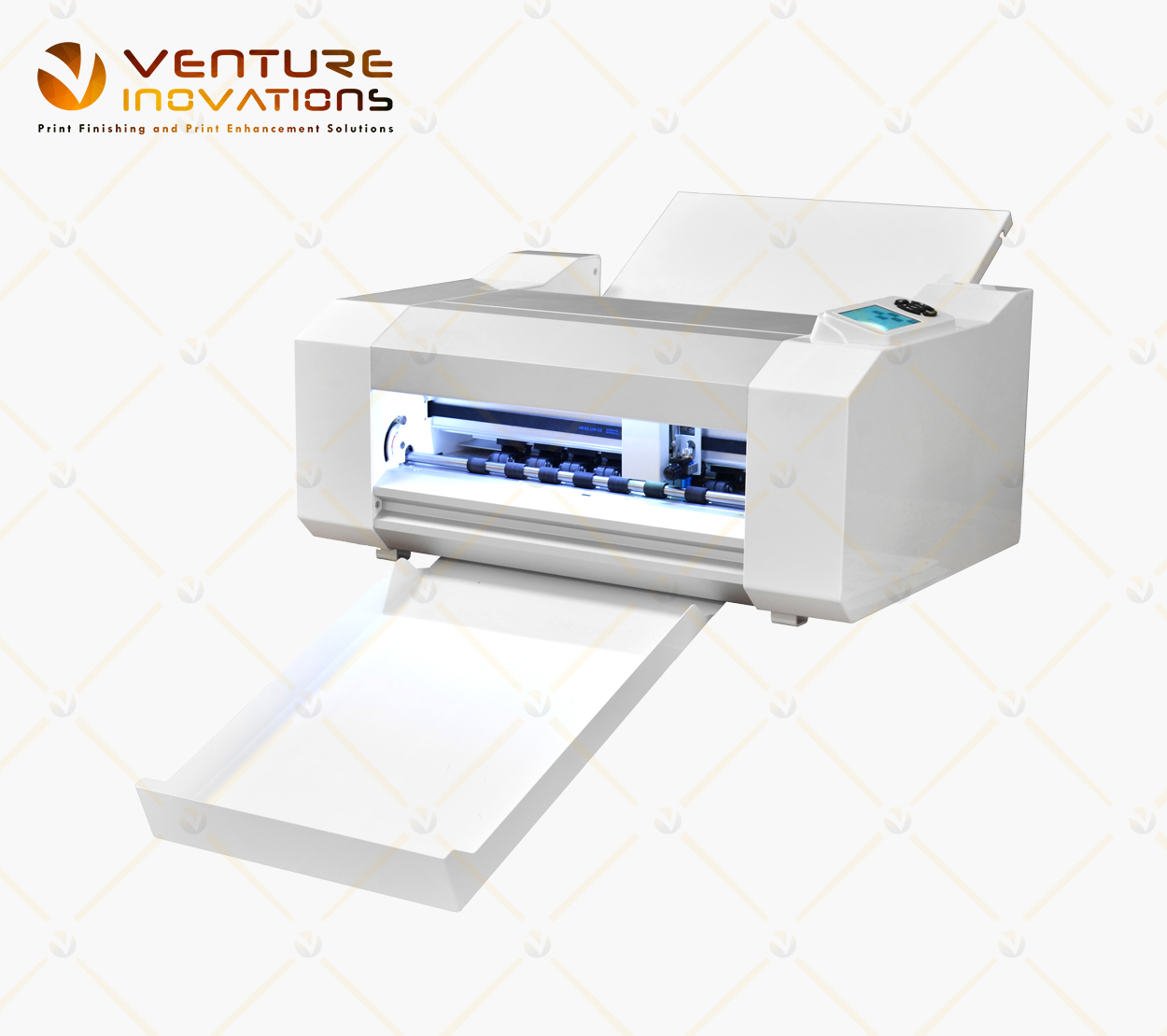

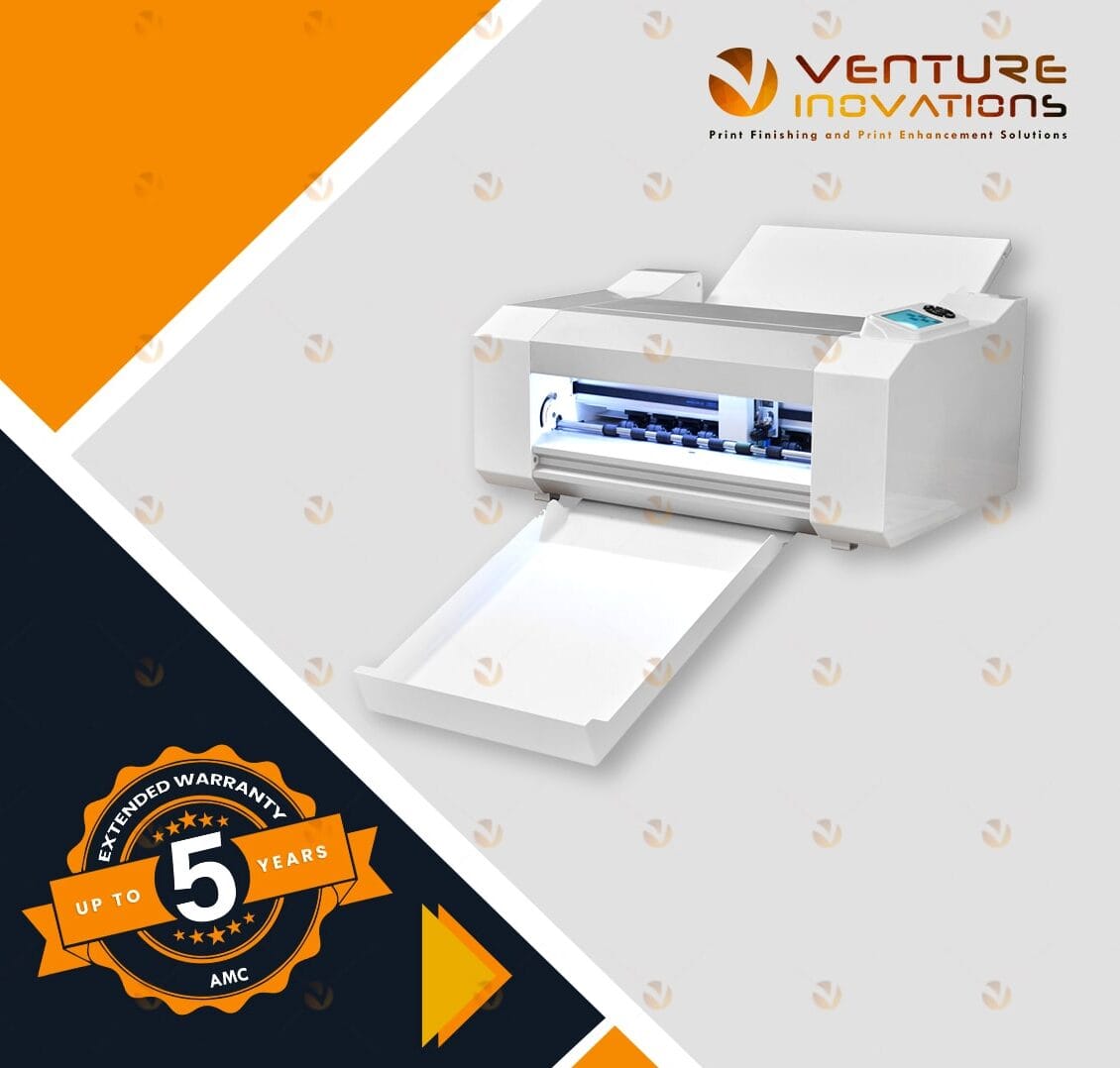

Venture offers a cutting-edge intelligent label cutting machine designed for unmatched precision, speed, and productivity.
Equipped with CCD technology, it automatically recognizes and locates printed marks for highly accurate cutting results. The upgraded servo motor ensures faster performance and improved precision across every job. With QR code intelligent hybrid cutting, the system can automatically identify different documents and recall their respective cutting paths without manual input.
Seamless multiple connection modes including USB, U disk, offline operation, network cable, and Wi-Fi provide flexible integration into any workflow. The large-capacity automatic feeder can handle up to 100 sheets of self-adhesive material at once (depending on the material type), ensuring continuous production.
Its widened paper structure ensures smooth paper feeding while preventing double-sheet errors. The integrated Cutstudio software displays real-time cutting status, tracks workload, and boosts efficiency with a user-friendly interface.
Designed for convenience, the system features tool-free disassembly for easy maintenance and optimal space-saving, making it the perfect solution for modern printing environments.
Features:
CCD Automatic Positioning: Automatically detects and locates printed marks for precise cutting accuracy.
Upgraded Servo Motor: Delivers faster cutting speed with enhanced accuracy and reliability.
QR Code Intelligent Cutting: Automatically identifies different documents and recalls their specific cutting paths.
Multiple Connectivity Options: Supports USB, U disk, offline mode, network cable, and Wi-Fi for flexible operation.
Large-Capacity Auto Feeder: Holds up to 100 sheets of self-adhesive material at once (depending on material type) for uninterrupted workflow.
Widened Paper Feeding System: Ensures smooth feeding and prevents double-sheet errors.
Cutstudio Software Integration: Displays real-time cutting status and tracks workload and efficiency directly from the software interface.
Tool-Free Disassembly: Enables quick maintenance and saves space with a compact, user-friendly design.
Specifications:
| Cutting Control System | X-DC servo motor, Y-DC servo motor |
| Positioning Sensor Type | Digital camera (CCD) |
| Control Panel | 4.3 inch capacitive touch screen |
| Number of Tool Holders | Single – blade holder |
| Blade Types | Blade and pen |
| Cutting Precision (Patterns) | Three patterns (Speed first, Balance first, Precision first) |
| Sheet Feeding Method | Friction feed |
| Sheet Feeding | Up to 20mm (about 100 sheets of self-adhesive material) |
| Scanning Code Type | Round marker, corner marker, QR code |
| Maximum Paper Feed Size | 483mm x 330mm |
| Maximum Cutting Size | 473mm x 325mm |
| Minimum Cutting Size | 210mm x 297mm |
| Scanning Speed | About 5s |
| Cutting Speed | 10-1500 |
| Cutting Force | 0-900 |
| Maximum Paper Weight | 250g (Depends on variable material) |
| Minimum Cutting Character | About 5mm² (Depends on variable material and graphics) |
| Mechanical Resolution | 0.02mm |
| Programmable Resolution | HPGL 0.025mm |
| Repeat Precision | ≤0.05mm |
| Cutting Media Types | Self adhesive paper, cardboard, PVC, PET etc |
| Connectivity | USB, WLAN, WiFi, U disk |
| Software and Compatibility | CutArtist, Corel Draw / Illustrator Plugin |
| Working Power | Maximum 150W |
| Voltage and Current | 100VAC ~ 240VAC, 50/60Hz, Maximum current 4A |
| Operation Environment | Temperature: +5ºC to +35ºC (41ºF–95ºF), Humidity: 30%~75%RH (Non-condensing) |
| Package Dimensions | 840mm x 690mm x 560mm |
| Actual Dimensions | 695mm x 480mm x 340mm |
| NW/GW | 24KG / 42KG |
