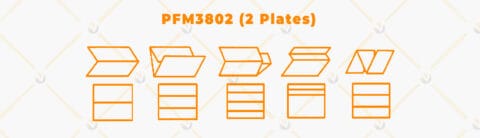

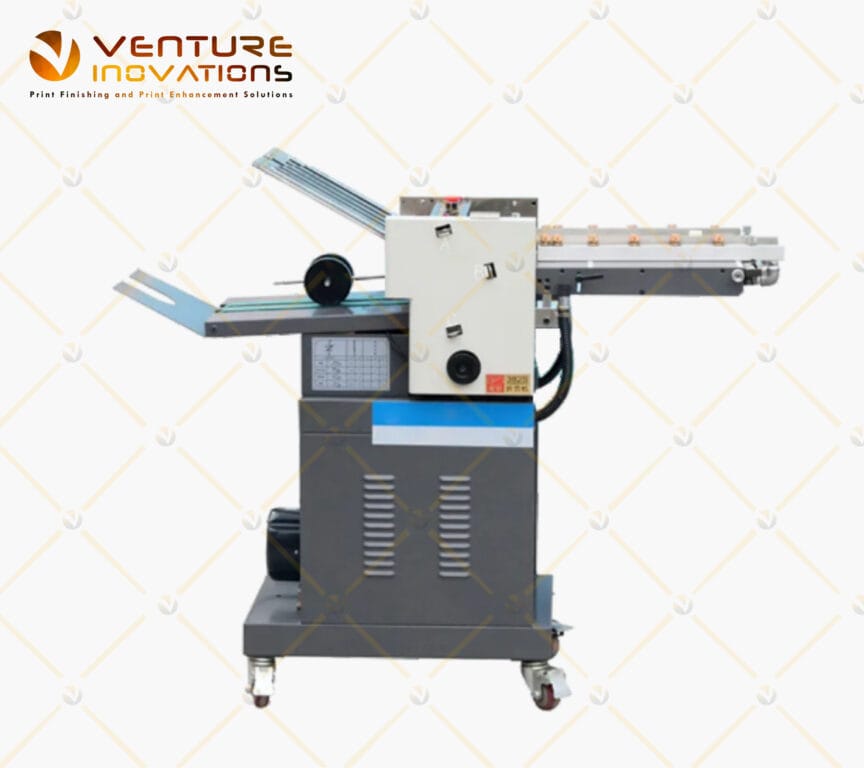

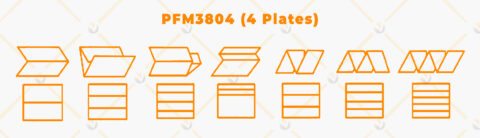

Venture presents the PFM 3802 & PFM 3804, a high-performance automatic paper folding machine engineered for commercial, office, and print shop environments. Designed with two folding plates, it offers a variety of folding styles to meet the diverse needs of businesses and organizations requiring fast, precise, and efficient document folding.
The PFM 3802 accommodates a wide range of paper sizes, supporting a maximum of 380 × 520 mm and a minimum of 90 × 120 mm, along with paper thicknesses from 50 gsm to 240 gsm, making it suitable for both lightweight sheets and heavier paper stocks.
Equipped with a reliable suction-type paper feed system, this machine ensures smooth, jam-free operation, enhancing productivity. With an impressive folding speed of up to 29,000 sheets per hour (A4 size), the PFM 3802 is ideal for high-volume folding tasks.
Features:
✔️ Precision Rear Stop Gauge – Ensures accurate folding alignment for consistent results.
✔️ Adjustable Speed Receiving Table – Enhances workflow efficiency with customizable output speed.
✔️ Powerful 1.5 kW Motor – Operates on 220V, 50/60Hz, combining high performance with energy efficiency.
✔️ Durable Helical Gear System – Provides smooth, quiet operation with long-lasting reliability.
✔️ Compact & Sturdy Design – Space-saving dimensions (1530 × 580 × 1280 mm) with a robust 138 kg build.
✔️ 2-Parallel Fold Capability – Supports standard parallel folding for various document types.
✔️ High-Speed Folding Performance – Handles large volumes with speeds up to 29,000 sheets per hour.
✔️ Adjustable Stop Gauge – Allows fine-tuning for different paper sizes and folding precision.
✔️ Suction-Type Paper Feed System – Ensures smooth, jam-free paper feeding for uninterrupted operation.
Specifications:
Number of Folding Plates
Maximum Feed size
Minimum feeding size
Feed thickness
Original speed
Profile size
Power supply
Machine power
Net Weight
Paper Feed system
PFM3802
2
380X520mm
90x120mm
50-240 Gsm
0-25000 / Hr. (A4)
1530x580X1280mm
220V 50 Hz/60Hz
1.5KW
138 Kgss
Suction Feeder
PFM3804
4
380X520mm
90x120mm
50-240 Gsm
0-20000 / Hr. (A4)
1530x580X1280mm
220V 50 Hz/60Hz
1.5KW
149 Kgs
Suction Feeder
