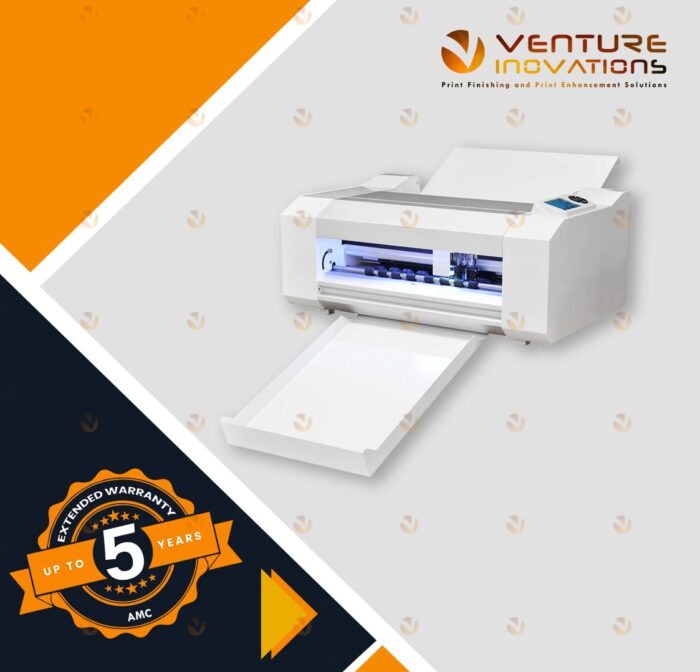

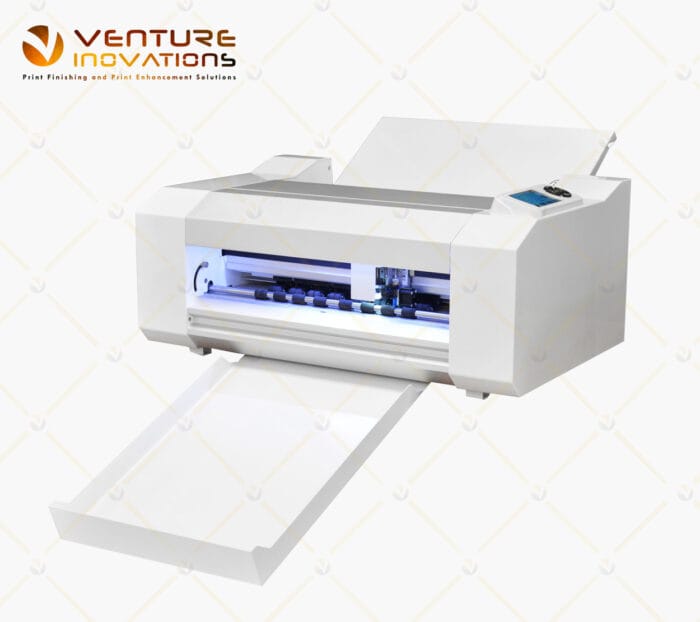

Venture offers an advanced cutting solution featuring a double-knife design capable of half cut, full cut, point cut, indentation, and drawing operations — all in one machine. Engineered for precision and speed, it comes equipped with an upgraded servo motor for enhanced cutting accuracy and faster performance.
With multiple connectivity options including USB, U disk, offline mode, network cable, and Wi-Fi, this machine ensures seamless integration into any workflow. The widened paper feeding structure enables smooth, jam-free operation while preventing double-sheet feeding.
It features automatic camera offset calibration, making setup quick and effortless. The system supports multi-functional autonomous software compatible with various models and works seamlessly with Cutstudio, allowing centralized control of multiple machines.
Designed for convenience, the machine allows tool-free disassembly, maximizing space efficiency and ease of maintenance. Venture delivers the perfect balance of power, flexibility, and user-friendly design in one high-performance cutting solution.
Features:
Double-Knife Design: Supports half cut, full cut, point cut, indentation, and drawing for versatile cutting applications.
Upgraded Servo Motor: Delivers faster operation with improved cutting precision and stability.
Multiple Connectivity Modes: Offers USB, U disk, offline mode, network cable, and Wi-Fi for flexible and convenient operation.
Automatic Cutting Path Recall: Efficiently remembers and resumes the cutting path for consistent results.
Widened Paper Feeding Structure: Ensures smooth, jam-free feeding while preventing double-sheet issues.
Automatic Camera Offset Calibration: Simplifies setup with precise alignment and quick calibration.
Advanced Multi-Functional Software: Compatible with multiple models, enabling broad application support.
Cutstudio Integration: User-friendly interface that allows centralized control of multiple machines.
Tool-Free Disassembly: Designed for easy maintenance and maximum space efficiency without the need for tools.
Specifications:
| Cutting Control System | X-DC servo motor, Y-DC servo motor |
| Positioning Sensor Type | Digital camera (CCD) |
| Control Panel | 4.3 inch capacitive touch screen |
| Number of Tool Holders | Double tool holders |
| Blade Types | Blade, creasing tool and pen |
| Cutting Precision (Patterns) | Three patterns (Speed first, Balance first, Precision first) |
| Sheet Feeding Method | Friction feed |
| Sheet Feeding | Up to 20mm (about 100 sheets of self-adhesive material) |
| Scanning Code Type | Round marker, corner marker, QR code |
| Maximum paper Feed Size | 483mm x 330mm |
| Maximum Cutting Size | 330mm x 483mm |
| Minimum Cutting Size | 210mm x 297mm |
| Scanning Speed | About 5s |
| Cutting Speed | 10–1500 |
| Cutting Force | 0–900 |
| Maximum Paper Weight | 250g (Depends on variable material) |
| Minimum Cutting Character | About 5mm² (Depends on variable material and graphics) |
| Mechanical Resolution | 0.02mm |
| Programmable Resolution | HPGL 0.025mm |
| Repeat Precision | ≤0.05mm |
| Cutting Media Types | Self‑adhesive paper, cardboard, PVC, PET etc |
| Connectivity | USB, WLAN, WiFi, U disk |
| Software and Compatibility | CutArtist, CorelDraw / Illustrator Plugin |
| Working Power | Maximum 150W |
| Voltage and Current | 100VAC ~ 240VAC, 50/60Hz, Maximum current 4A |
| Operation Environment | Temperature: +5 °C to +35 °C (41 °F–95 °F); Humidity: 30 %–75 % RH (Non‑condensing) |
| Package Dimensions | 870mm x 685mm x 605mm |
| Actual Dimensions | 740mm x 485mm x 340mm |
| NW/GW | 26 ± 5 kg / 44.5 ± 5 kg |
